LCSG Laser Cutting Machine

The LCSG laser cutting machine can be used for the following fields: sheet metal processing, automobile manufacturing, case and electric box, fitness equipment, stainless steel kitchen ware, elevator manufacturing, environmental protection equipment, machine manufacturing, electrical appliances manufacturing, petroleum tubular goods, aerospace industry, lighting products etc.

Finished products

Power: optional 1000W/2000W/2500W/3000W/4000W
Cutting material: carbon steel, stainless steel, aluminum, copper etc.
Applicable plate length: 3m, 4m, 6m
Applicable plate width: 1.5m, 2m (Note: the dimension can also be customized according to the actual requirements of the customers.)

Model LCSG3015 LCSG4020 LCSG3015F LCSG4020F
Processing area 3000mm x 1500mm 4000mm x 2000mm 3000mm x 1500mm 4000mm x 2000mm
X axis stroke 3050mm 4050mm 3050mm 4050mm
Y axis stroke 1550mm 2050mm 1550mm 2050mm
Z axis stroke 120mm
X/Y axis positioning accuracy ±0.03mm/min
Maximum positioning speed 120m/min
Maximum accelerated speed 1.2G
Laser power CO2:2KW/2.5KW/4KW Optical fiber: 1KW-3KW
Equipment dimension 9000mm x 3300mm x 1800mm 1100mm x 3800mm x 1800mm 9000mm x 3300mm x 1800mm 1100mm x 3800mm x 1800mm
Machine weight 12T 14T 12T 14T
Laser CO2 Mild steel Stainless steel Aluminum Brass
2.0KW 12mm 6mm We do not suggest cutting high reflectance material.
2.5KW 18mm 10mm
4.0KW 22mm 12mm
Fiber laser Mild steel Marine high intensity steel Stainless steel Aluminum Brass
1KW 8mm 6mm 4mm 4mm 4mm
2KW 16mm 14mm 6mm 6mm 6mm
2.4KW 20mm 16mm 8mm 8mm 8mm
3KW 22mm 18mm 10mm 10mm 10mm
Detail of Robot Plasma Cutting Machine

The LCSG laser cutting machine has the following feature

1. The cross beam of the LCSG laser cutting machine is box type. It adopts aerial cast aluminum parts which has the lightest weight while satisfying the rigidity and intensity demand by the calculation of stress analysis software, so that the equipment has relatively high dynamic property.

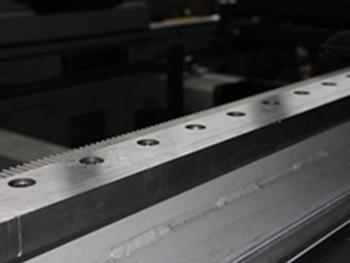

2. The longitudinal and transverse rack of the LCSG laser cutting machine: it adopts imported high precision rack to reduce the accumulated error caused by transmission, thus ensuring the stable operation and transmission accuracy of the machine. The working precision meets the standard of DIN8523.

3. The CNC system of Jinfeng laser cutting machine adopts the CNC and digital servo drive system imported from FAGOR Spain: FAGOR is a world famous enterprise in CNC system industry. The product of FAGOR is one of the CNC systems with largest market share in laser cutting machine industry in China. FAGOR has offices in Beijing, Guangzhou, Shanghai, Dalian etc. Meanwhile, this CNC system are always available in large stocks in Jinfeng, so that we can provide in-time, rapid and localized services for our customers.

4. This cutting machine adopts YLS-2000 high power fiber laser of IPG Photonics, the largest fiber laser manufacturer in the world. This fiber laser has the following advantages: large heat dissipating area, good laser beam quality, small size etc. Comparing with gas laser and solid state laser with the same size, it has significant advantages, thus it is gradually becoming the main laser processing method for high precision metal plate.

Jinfeng introduction
1. The key part of the complete LCSG laser cutting machine is rack assembly which is carried out by CNC machining center.
2. Meanwhile, it can be multi-surface processed. So the installation precision and machine service life can be ensured.
3. We have a technical team with 80 employees, providing R&D, design, training and after-sales service.
4. We have a specified and independent accessory warehouse with rich stock.
5. We have a specified process developing center for laser technology to ensure continuous update of the database.
6. We can provide our customers with technical guidance of laser cutting process and database update for free.
7. The machine can be equipped with proper dust removal system according to our clients' requirements of environmental protection.
