Butt Welding Machine

Application
The butt welding machine is specially designed according to customers' welding requirements. It adopts load supporting heavy portal structure. The moving of welding torch is driven by variable speed motor. After the adjustment of the primary position of the welding torch, the machine can automatically accomplish the butt welding of two plates once the welding is started.

Parameter
Metal sheet thickness 3-20mm
Welding speed 100-2400mm/min
Welding power source Gas shielded welding or submerged arc welding
Input Roller conveyor length According to the length of plate
Output Roller conveyor length
Welding torch Oscilation device 1set

Product features and technical description
1.The butt welding machine adopts mixed gas shielded welding which can realize double side forming with only one side welding. There is no need to overturn the steel plate to do the second welding, so the operation is simple and the efficiency is quite high.

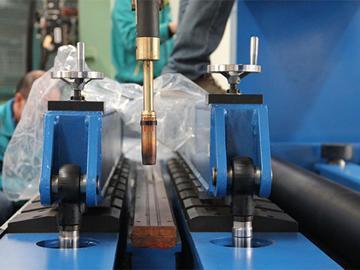

2.There is a hydraulic press unit at the butt joint of the plates. It can be used for fixing and clamping of the edges of the two plates, so that it is convenient for welding. Meanwhile, it can reduce the degree of local deformation.

Jinfeng introduction
Jinfeng has 2 large specified accessory warehouse with sufficient stock, so that we can provide service in time.
We have a stable sales team. All the members of the sales team have more than 10 years of experience in service, so that they can provide customers with various consultation and services rapidly, in time and expertly. Our executive vice president leads an after-sales service team of 30 employees, so that they can provide 24-hour after-sales service all year round.

Jinfeng Welding & Cutting Machinery Manufacture Co., Ltd hires senior engineers from ESAB to lead mechanical department, electrical department and software department. There is 80 people in the team in total. They will carry out development and design of various structural steel H beam production lines, so that we have technical guarantee.

Jinfeng has strong production capacity: we have 13 imported CNC machining centers, 3 4mx12m large machining centers and 300 equipment sets such as CNC grinding machine, drilling machine and milling machine etc.

We also have specified hardware processing workshop, plate welding workshop, assembly shop, packaging shop, painting and drying shop etc.

The key part of the complete butt welding machine is rack assembly which is carried out by CNC machining center. Meanwhile, it can be multi-surface processed. So the installation precision and machine service life can be ensured.

We have a technical team with 80 employees, providing R&D, design, training and after-sales service.
