Product application

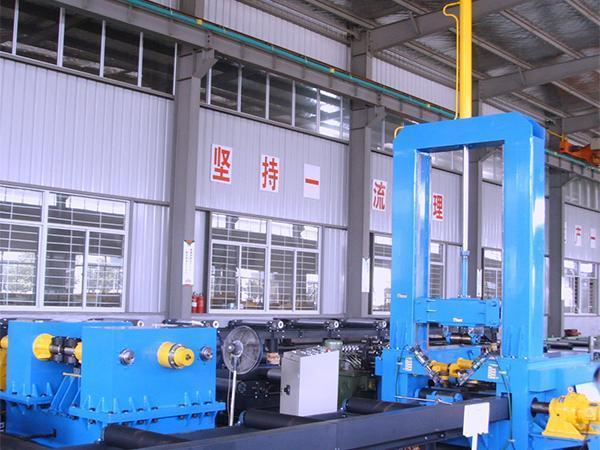

The steel H beam assembly machine can be mainly used for assembly and spot welding of symmetry, dissymmetry, eccentricity and variable cross-section steel H beam. It can carry out positioning, clamping and spot welding automatically which is the foundation of the next continuous welding.
Product features
The steel H beam assembly machine has the following features:
1. The structures welded by the steel H beam assembly machine are all stress relieved, so that there will hardly be deformation.
2. Structural steel transportation: the main motor will drive the master cylinder by adopting the gear reducer. It can also drive the other cylinders at the same time through chain drive. The frequency converter can realize variable speed transportation of workpiece. The assembling speed is 0.5-5.5m/min.
3. The input roller conveyor is equipped with centering device in order to carry out primary positioning of flange slab before entering the base machine and carry out web vertical supporting.
4. The base machine adopts the method of manual adjustment first and then hydraulic clamping to realize precise positioning and clamping of flange slab and web.
5. For the structural steel of which the web has large height thickness ratio, the base machine can be equipped with auxiliary web clamping device to prevent the deformation caused by the pressing of depress device.
6. The whole process of assembly is operated by electric control panel, so that it is convenient and easy. The maintenance is quite easy.
7. The steel H beam assembly machine ordered by our customers can be either equipped with automatic spot welding with gas shielded arc welding or manual spot welding.
| Applicable workpiece assembling dimensions | |
| Web height | 200-1500 mm |
| Thickness | 6-32 mm |
| Flange plate width | 200-800 m |
| Thickness | 6-40 mm |
| Structural steel length | 4000-15000 mm |
| Assembly speed | 0.5-5.5 m/min (stepless speed regulation) |
| Input roller conveyor length | 12000 mm |
| Output roller conveyor length | 12000 mm |
| Power source | AC380V 50Hz 3 phase |
| Applicable workpiece assembling dimensions | |
| Web height | 200-1800 mm |
| Thickness | 6-32 mm |
| Flange plate width | 200-800 mm |
| Thickness | 6-40 mm |
| Structural steel length | 4000-15000 mm |
| Assembly speed | 0.5-5.5 m/min (stepless speed regulation) |
| Input roller conveyor length | 12000 mm |
| Output roller conveyor length | 12000 mm |
| Centering device | combined control of hydraulic and mechanical |
| Speed control | AC frequency converter |
| Power source | AC 380V 50Hz 3 phase |
| Applicable workpiece assembling dimensions | |
| Web height | 200~2500 mm (200-1800mm,200-2000mm,200-2200mm) |
| Thickness | 6~60 mm |
| Flange plate width | 200~800 mm |
| Thickness | 6~80 mm |
| Workpiece length | 4000~15000 mm |
| Assembly speed | 0.5~5.5 m/min (stepless speed regulation) |
| Roller conveyor length | 12000 mm |
| Centering device | combined control of hydraulic and mechanical |
| Speed control | AC frequency converter |
| Power source | AC380V 50Hz 3 phase |
Jinfeng introduction
Jinfeng Welding & Cutting Machinery Manufacture Co., Ltd has mechanical department, electrical department and software department. There is 80 people in the team in total. We also hire senior engineers from ESAB to carry out joint development and design of various structural steel H beam production lines, so that we have technical guarantee.
Jinfeng has strong production capacity: we have 13 imported CNC machining centers, 3 4mx12m large machining centers, so that the annual output of various assembly machine is 1000.
All the members of the sales team have more than 10 years of experience in service, so that they can provide customers with various consultation and services in time. Besides, Jinfeng is equipped with an after-sales service team of 30 employees, so that they can provide 24-hour after-sales service all year round.
