Application

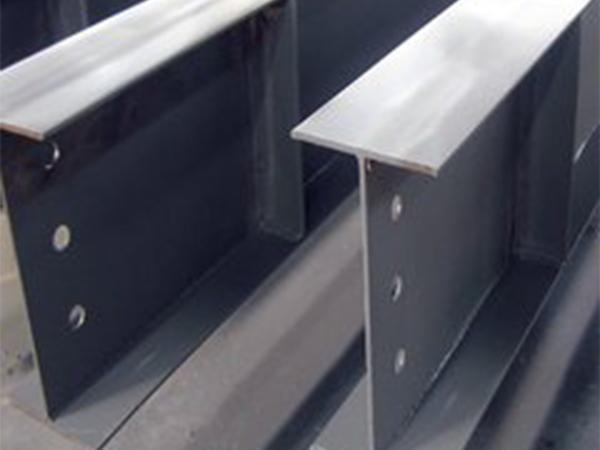

The steel H beam assembling machine can carry out H beam assembling with manual welding or machine welding.
| Applicable H beam flange slab width | 150~500 mm |
| Applicable H beam flange slab thickness | 5~20 mm |
| Applicable H beam web height | 300~1200 mm |
| Applicable H beam web thickness | 3~12 mm |
| Applicable H beam length range | 5~15 m |
| Applicable structural steel variable cross-section drift angle | ≤ 8° |
| Mechanical power | 7.9 kW |
| Input roller bed length | 15 m |
| Output roller bed length | 15 m |
| Base machine total width | 3310 mm |
| Base machine total length | 990 mm |
| Base machine total height | 1380 mm |
Features
1. All the operation of devices of the steel H beam assembling machine are hydraulic or motor driven, so the operation is simple and reliable, the labor intensity is small.
2. There is no need of overall length spot welding of the workpiece but the end spot welding during assembly, so that the assembly efficiency will be greatly improved.
3. The movable box can rotate, so that the H beam with variable cross-section can also be assembled.
Description
The steel H beam assembling machine mainly consists of input roller bed, hydraulic plate turnover device, flange slab lifting device, base machine, output roller bed (or front horizontal assembling machine input roller bed which is the common part of two base machines), hydraulic system, electronic control system, welding source (user-supplied) etc. The base machine consists of machine frame, fixed box device, movable box device, frame rotation device, web clamping device for both sides, lifting device etc.
Jinfeng introduction
Jinfeng Welding & Cutting Machinery Manufacture Co., Ltd has mechanical department, electrical department and software department. There are 80 people in the team in total. We also hire senior engineers from ESAB to carry out joint development and design of various structural steel H beam production lines, so that we have technical guarantee.
Jinfeng has strong production capacity: we have 13 imported CNC machining centers, 3 4mx12m large machining centers, so that the annual output of various assembly machine is 1000.
All the members of the sales team have more than 10 years of experience in service, so that they can provide customers with various consultation and services in time. Besides, Jinfeng is equipped with an after-sales service team of 30 employees, so that they can provide 24-hour after-sales service all year round.
